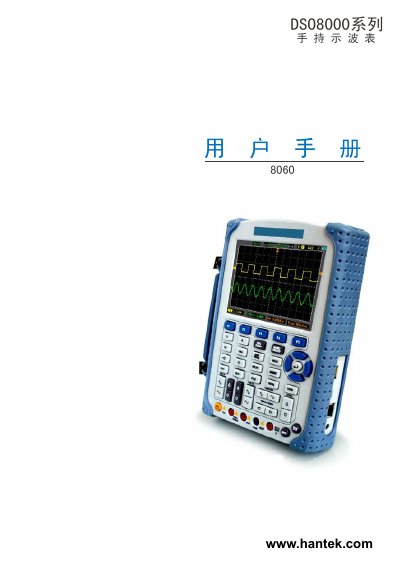

The manual provides safety guidelines, operation instructions, specifications and troubleshooting for the Hantek DSO8000 series handheld oscilloscope model…
The DSO8000 series handheld oscilloscope is a dual‑channel, 60 MHz bandwidth instrument designed for engineering measurement, field work, research, design, education and training. It features a 5.7‑inch color TFT display, USB storage, and built‑in FFT and math functions.
This user manual covers general safety information, initial inspection, front‑panel description, detailed setup of vertical, horizontal and trigger systems, waveform acquisition, measurement functions, auxiliary features, application examples, a built‑in digital multimeter and signal generator, troubleshooting, technical specifications and appendices with accessories and warranty details. This manual is written in Chinese.
| Channels | 2 |
|---|---|
| Bandwidth | 60 MHz |
| Maximum real‑time sampling rate | 250 MSa/s |
| Memory length | 32 k points (single channel) / 16 k points per channel (dual) |
| Display | 5.7‑inch TFT LCD, 240 × 320 pixels |
| USB interface | USB 2.0 |
| Power input | AC 100‑240 V 50‑60 Hz, DC 8.5 V 1500 mA |
| Battery runtime | ≈6 hours |
| Dimensions | 245 × 163 × 52 mm |
| Weight | 1.2 kg |
It has two input channels.
The maximum real‑time sampling rate is 250 MSa/s.
Use the correct rated probe, avoid connecting or disconnecting while the probe is attached to a voltage source, and ensure proper grounding before handling.
