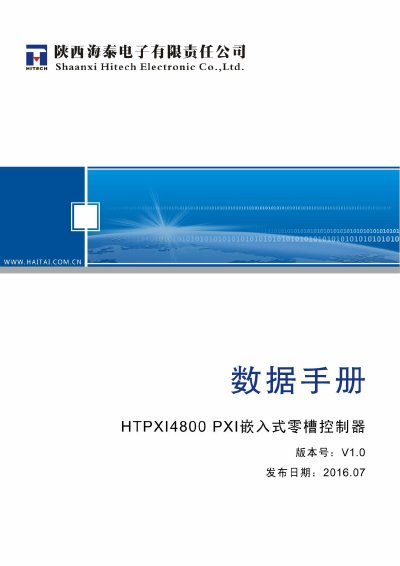

Haitai HTPXI4800 PXI Embedded Zero-Slot Controller Datasheet

About this manual

The Haitai HTPXI4800 is a PXI embedded zero-slot controller designed for PXI chassis systems. It features an Intel Core i7-3555LE processor, dual-channel DDR3 memory supporting up to 16GB, and storage options including SATA HDDs and SSDs. The device operates on a 32-bit Windows XP or Windows 7 operating system. This manual is written in Chinese.

What's inside

• Product Specifications
• Physical Dimensions
• Technical Indicators
• Power Requirements
• Optional Accessories
• Environmental Adaptability
• Compliance Standards
• Service and Technical Support

Frequently asked questions

What are the power requirements for the CPU under full load?

Under full load, the requirements are +3.3V/3A, +5V/6A, and +12V/0.5A.

What is the maximum supported memory capacity for the HTPXI4800?

The controller supports a maximum of 16GB of DDR3 memory.

What are the power requirements when the CPU is under full load?

When the CPU is fully loaded, the unit requires +3.3V/3A, +5V/6A, and +12V/0.5A.
