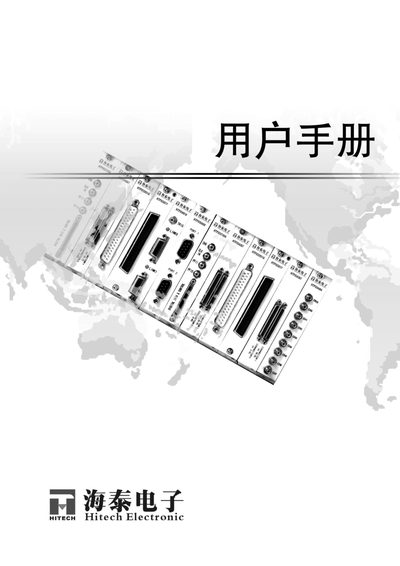

Haitai T600 PXIe 18-Slot Chassis User Manual

This manual covers the installation, configuration, and operation of the Haitai T600 PXIe 18-slot chassis, including safety, hardware setup, and…

Brand: HAITAI
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 24
File format: PDF
File size: 1.7 MB
Published: 14 October, 2026
Updated: 14 October, 2026
MD5 checksum: A672937049E8D7AE7294CB3470D38B64
PDF: Haitai T600 PXIe 18-Slot Chassis User Manual PDF

About this manual

The Haitai T600 is an 18-slot PXIe chassis compatible with PXIe and cPCIe specifications. It features one system slot with 4x4 PCIe links providing up to 8GB/s bandwidth, and 17 peripheral slots including mixed, dedicated PXIe, and timing slots. The chassis supports up to 600W of power output and includes built-in 10MHz and 100MHz clock sources. This manual is written in Chinese.

What's inside

Safety Precautions
Product Overview
Hardware System
Technical Specifications
Installation
Operation
Maintenance
Troubleshooting

Specifications

Slots	18 slots (1 system, 8 mixed, 8 PXIe dedicated, 1 timing)
System Bandwidth	8GB/s unidirectional
Peripheral Bandwidth	2GB/s unidirectional
Maximum Power Output	600W
Weight	11kg

Frequently asked questions

What is the maximum power output of the T600 chassis?

The power supply system can provide a maximum of 600W of output power.

Which computers are recommended for use with the T600?

Lenovo E31 series graphics workstations with BIOS version 9SKT72AUS are recommended for supporting up to 17 cPCIe/PXIe devices.
