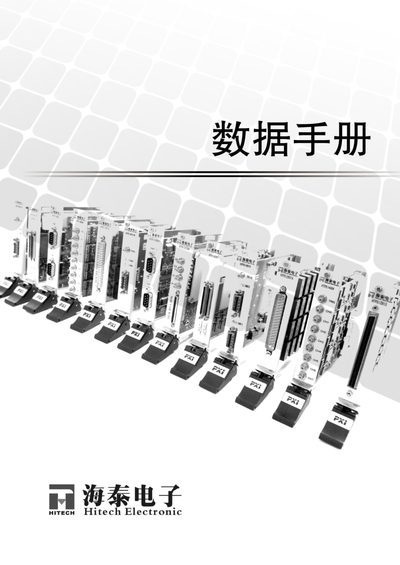

This datasheet describes the Haitai HTPXI4710, a PXI module with 48 isolated input channels for status signal acquisition in testing systems.
The Haitai HTPXI4710 is a 48-channel status input module designed for use in PXI or PXIe chassis hybrid slots. It features optically isolated channels that can be switched between two voltage ranges (0V to +5V and 0V to +27V) via DIP switches, allowing it to meet specific application requirements.
The module complies with the PXI specification R2.2 and is suitable for various fields including communications, automotive electronics, aviation, and aerospace. It operates on a maximum power requirement of +3.3V/0.5A within a standard 3U form factor. This manual is written in Chinese.
| Channels | 48 input channels |
|---|---|
| Isolation Method | Optocoupler isolation |
| Input Voltage Ranges | 0V to +5V, 0V to +27V |
| Low Level Input Voltage (0-5V) | <= +0.8V |
| Power Requirement | +3.3V/0.5A max |
| Form Factor | 3U (100mm x 160mm) |
The module uses optocoupler isolation between channels.
It complies with the PXI specification R2.2.
The board requires a maximum of +3.3V at 0.5A.
