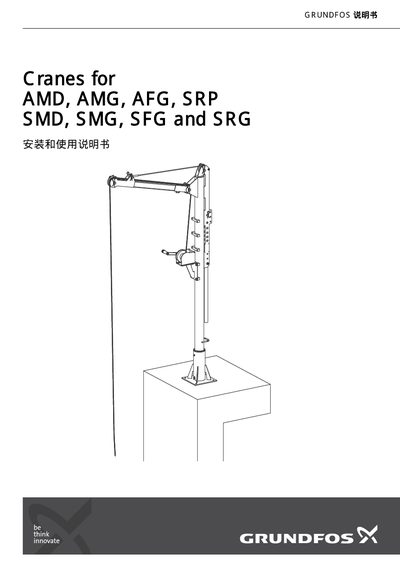

Grundfos Cranes for SMD, SMG, SFG and SRG Installation and Use Manual

About this manual

This document is the Chinese version of the user manual for Grundfos cranes, covering models AMD/AMG/AFG/SRP as well as SMD/SMG/SFG/SRG. It details safety precautions, installation procedures for the base and crane assembly, operational instructions, and maintenance guidelines.

The cranes are designed for lifting materials in wastewater treatment plants, specifically for retrieving or lowering devices into treatment pools. The manual specifies that these units are not intended for use by humans, on construction sites, stages, or in explosive atmospheres. This manual is written in Chinese.

What's inside

• Safety Overview
• Product Description
• Installation Base
• Assembly of Crane
• Operation
• Maintenance and Service

Frequently asked questions

What is the minimum required thickness for the concrete base?

The concrete base must have a thickness of at least 16 cm.

What are the operating temperature limits for the crane?

Operation is permitted between -10 C and +50 C.
