CM5-4 A-R-G-V-AQQV is a compact horizontal multistage centrifugal pump from Grundfos, with a 3 phase, 220-240D/380-415Y V, 50 HzHz foot mounted motor. The pump has an axial suction port and a radial discharge port, and includes a specially designed mechanical shaft seal in the AQQV solution. The shaft, impellers, chambers and filling plugs are made of stainless steel. Suction and discharge are made of Stainless steel. The CM can also operate as a CME by connecting the motor to a CUE. Please find more information in the CUE part of Win/WebCAPS.

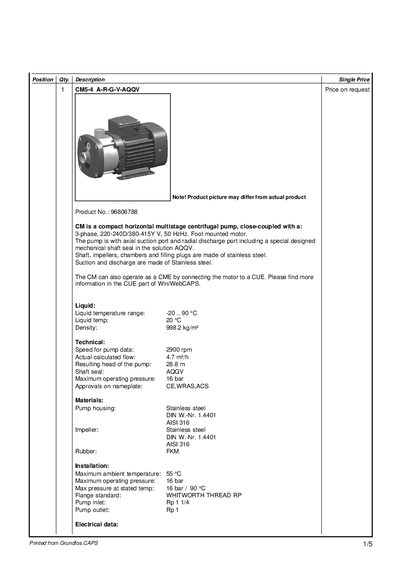

This document provides technical data for the Grundfos CM5-4 A-R-G-V-AQQV, a compact horizontal multistage centrifugal pump with a close-coupled 3-phase motor. The pump features an axial suction port and radial discharge port, constructed primarily from stainless steel (DIN W.-Nr. 1.4401 / AISI 316) with an FKM shaft seal. It is designed for a liquid temperature range of -20 to 90 °C and a maximum operating pressure of 16 bar.
| Product Type | Compact horizontal multistage centrifugal pump |
|---|---|
| Shaft Seal | AQQV |
Yes, the CM can operate as a GME by connecting the motor to a CUE.
