This is a price list of a high pressure centrifugal pump

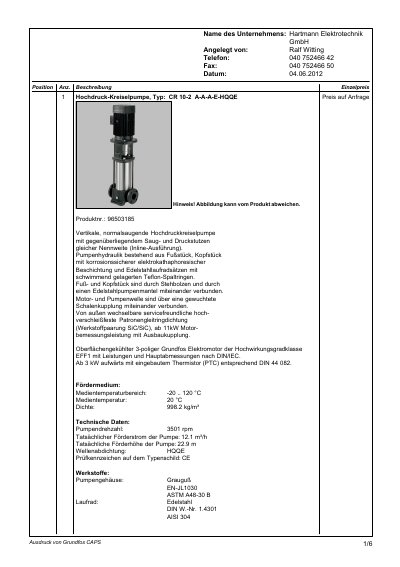

This document is a technical data sheet for the Grundfos CR 10-2 A-A-A-E-HQQE, a vertical, self-priming high-pressure circulating pump. It features a corrosion-resistant electro-cathodic coating and stainless steel impeller seats with floating Teflon mechanical seals. The pump is driven by an EFF1 efficiency class Grundfos electric motor with an integrated thermistor for overload protection. This manual is written in German.
| Pump speed | 3501 rpm |
|---|---|
| Shaft seal type | HQQE |
| Impeller material | Stainless steel AISI 304 |
| Motor rated power | 1.5 kW |
| Rated voltage | 3 x 220-277 D/380-480 Y V |
| Rated frequency | 60 Hz |
| Maximum operating temperature | 120 °C |
The pump can handle a medium temperature range of -20 to 120 °C.
The pump uses an HQQE shaft seal.
The motor has a rated power of 1.5 kW.
