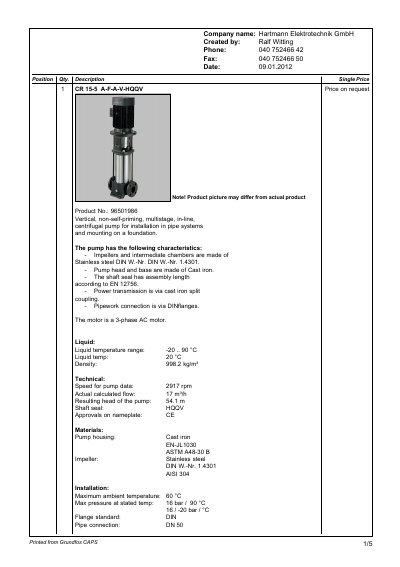

This product is a Grundfos CR 15-5 A-F-A-V-HQQV multistage centrifugal pump. It is a vertical, non-self-priming pump that can be installed in pipe systems and on a foundation.
This document provides technical specifications for the Grundfos CR 15-5 A-F-A-V-HQQV, a vertical non-self-priming multistage in-line centrifugal pump. The unit is designed for installation in pipe systems with stainless steel impellers and cast iron housing.
The pump is driven by a 3-phase AC motor (Type 112MC) with an IE3 efficiency class. Key electrical data includes a rated power of 4kW, a rated voltage of 3x 380-415V, and a rated speed between 2920-2940 rpm.
| Pump Type | Vertical, non-self-priming, multistage, in-line, centrifugal pump |
|---|---|
| Rated Power | 4kW |
| Motor Type | 112MC |
| IE Efficiency Class | IE3 |
| Rated Voltage | 3x 380-415 V |
| Pump Housing Material | Cast iron EN-JL1030 / ASTM A48-30 B |
| Impeller Material | Stainless steel DIN W.-Nr. 1.4301 / AISI 304 |
| Shaft Seal Type | HQQV |
| Maximum Ambient Temperature | 60 °C |
The pipe connection size is DN 50.
The maximum ambient temperature is 60 °C.
The resulting head of the pump is 54.1 m.
The power required by the pump is 4 kW.
