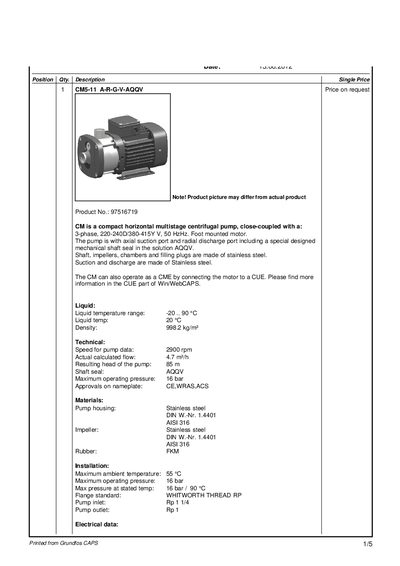

The CM5-11 A-R-G-V-AQQV is a compact horizontal multistage centrifugal pump with a 3-phase, 220-240D/380-415Y V, 50 HzHz foot-mounted motor. The pump has an axial suction port and radial discharge port including a special designed mechanical shaft seal in the solution AQQV. Shaft, impellers, chambers and filling plugs are made of stainless steel. Suction and discharge are made of Stainless steel. The CM can also operate as a CME by connecting the motor to a CUE. Please find more information in the CUE part of Win/WebCAPS.
This document provides technology data for the Grundfos CM5-11 A-R-G-V-AQQV, a compact horizontal multistage centrifugal pump with a close-coupled 3-phase motor. The pump features a stainless steel construction (housing and impeller) and an AQQV mechanical shaft seal. It is designed for liquids with a temperature range of -20 to 90°C and a maximum operating pressure of 16 bar.
| Product Type | Compact horizontal multistage centrifugal pump, close-coupled |
|---|---|
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 .. 90°C |
| Pump Housing Material | Stainless steel DIN W.-Nr. 1.4401 AISI 316 |
| Impeller Material | Stainless steel DIN W.-Nr. 1.4401 AISI 316 |
| Rubber Material | FKM |
| Shaft Seal Type | AQQV |
| Pump Inlet | Rp 1 1/4 |
| Pump Outlet | Rp 1 |
The maximum operating pressure is 16 bar.
Both the pump housing and impeller are made of stainless steel (DIN W.-Nr. 1.4401 / AISI 316).
The pump can operate with liquids in a temperature range from -20 to 90°C.
The pump includes a special designed mechanical shaft seal of type AQQV.
