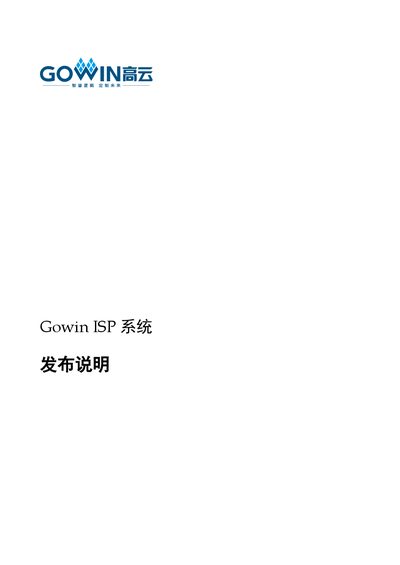

The Gowin RN522-1.1 ISP System User Guide explains system functions, supported FPGA, IP cores and how to use the software.
This guide provides an overview of the Gowin ISP system, which processes image sensor output using CFA, CCM, Gamma correction and AE/AWB modules to produce balanced color images. It lists the supported FPGA family, required software versions and the IP cores included in the design.
The document also details how to obtain the guide, the available design files, and contact information for technical support. It includes a table of the IP cores and notes on version‑specific constraints for DDR3 memory and MIPI interfaces. This manual is written in Chinese.
| Supported FPGA series | GW2A-55C series |
|---|---|
| Included IP cores | gowin_empu_m1, mipi rx advance, ddr3 memory interface |
| Required software version (empu_m1) | Gowin_V1.9.7.06Beta |
The ISP system supports the GW2A‑55C series FPGA products.
The user guide can be downloaded from the Gowin official website.
The gowin_empu_m1 IP uses Gowin_V1.9.7.06Beta, the mipi rx advance IP uses Gowin_V1.9.7Beta, and the DDR3 memory interface IP uses Gowin_V1.9.8Beta.
