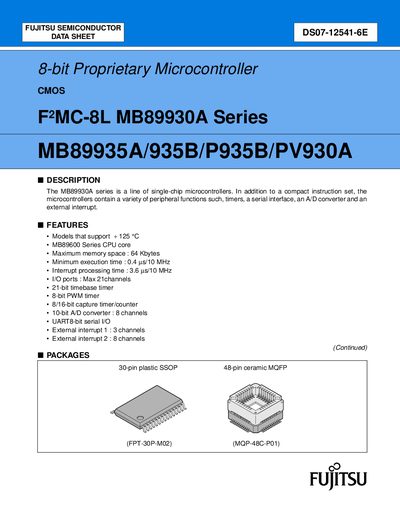

The Fujitsu MB89930A Series datasheet provides specifications, pin assignments, package options, and functional features of the 8-bit proprietary…
The datasheet introduces the MB89930A Series 8‑bit proprietary microcontroller, based on the MB89600 core, and describes its instruction set, peripheral functions such as timers, UART, 10‑bit A/D converter, and low‑power modes.
It details the available packages (30‑pin SSOP and 48‑pin MQFP), pin assignments, mask options, ordering information, and mechanical dimensions for the device.
| Maximum memory space | 64 Kbytes |
|---|---|
| Operating voltage | 2.2 V to 5.5 V |
| Package types | 30‑pin SSOP, 48‑pin MQFP |
| I/O ports | Max 21 channels |
| A/D converter | 10‑bit, 8 channels |
| UART | 8‑bit serial I/O |
| Interrupt processing time | 3.6 ms at 10 MHz |
The device operates from 2.2 V up to 5.5 V.
It provides up to 21 general‑purpose I/O channels.
The microcontroller is offered in a 30‑pin plastic SSOP and a 48‑pin ceramic MQFP package.
The maximum memory space is 64 Kbytes.
