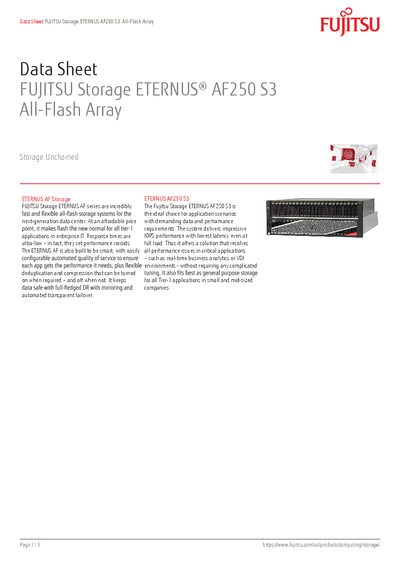

The Fujitsu AF250 S3 All-Flash Array data sheet outlines its high‑performance, ultra‑low latency flash storage features and specifications.
The Fujitsu ETERNUS AF250 S3 All‑Flash Array is positioned for enterprise IT workloads that demand ultra‑low response times and high IOPS. It offers built‑in deduplication, compression, automated quality‑of‑service and transparent failover to ensure continuous operation.
Technical details include support for multiple RAID levels, a range of 2.5‑inch SSD capacities, high random and sequential I/O performance, low latency, and robust power and environmental specifications. The sheet also lists compliance, warranty and support options.
| Supported RAID levels | 0, 1, 1+0, 5, 5+0, 6, 6+0 |
|---|---|
| Host Interfaces | Fibre Channel (16 Gbit/s, 32 Gbit/s), iSCSI (10 Gbit/s) |
| Maximum number of hosts | 16 |
| Drive Type | 2.5‑inch SSD (30.72TB / 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB) |
| Maximum LUN capacity | 128 TB |
| Random access performance | 600,000 IOPS (8 KB read) |
| Sequential access performance | 11,000 MB/s (128 KB read) |
| Maximum power consumption | 5,100 W (AC 100‑120 V) |
| System availability | 99.9999% |
It supports RAID levels 0, 1, 1+0, 5, 5+0, 6 and 6+0.
The array delivers up to 600,000 IOPS for 8 KB reads and 480,000 IOPS for 8 KB writes.
It operates on AC 100‑120 V or 200‑240 V and consumes up to 5,100 W.
