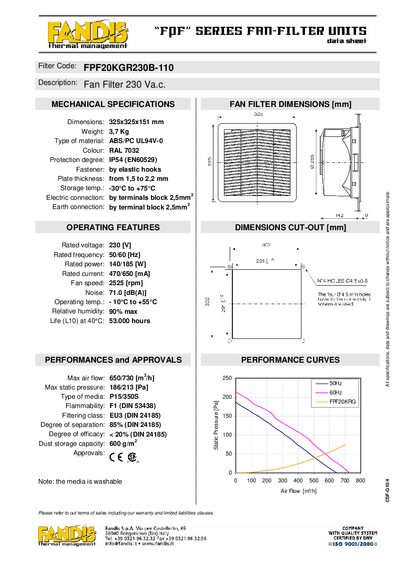

Specification sheet for the FPF20KGR230B-110 fan filter, detailing dimensions, material, performance and approvals.
The FPF20KGR230B-110 fan filter is built from ABS/PC UL94V-0 material, measures 325 × 325 × 151 mm, weighs 3.7 kg and has an IP54 protection rating. It is designed for 230 V operation and features elastic‑hook fasteners with a plate thickness of 1.5‑2.2 mm.
Performance data include a fan speed of 2525 rpm, noise level of 71 dB(A), maximum airflow of 650‑730 m³/h and static pressure up to 213 Pa. The filter meets EU3 classification, offers a 85 % separation efficiency and is approved for use under the listed standards.
| Dimensions | 325x325x151 mm |
|---|---|
| Weight | 3.7 Kg |
| Material | ABS/PC UL94V-0 |
| Protection degree | IP54 |
| Rated voltage | 230 V |
| Fan speed | 2525 rpm |
| Noise | 71.0 dB(A) |
| Max airflow | 650/730 m³/h |
| Max static pressure | 186/213 Pa |
| Filtering class | EU3 |
The rated voltage is 230 V.
The fan speed is 2525 rpm.
Maximum airflow is 650‑730 m³/h.
It has an IP54 protection degree.
