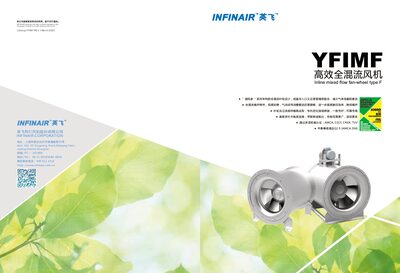

The Infinair YFIMF catalog provides product features, certifications, performance curves, and selection guidelines for the high‑efficiency fully mixed flow…
The YFIMF series is an inline mixed‑flow fan with a patented fully mixed‑flow impeller design that reduces leakage and turbulence, delivering high static pressure efficiency and low noise. The fan is offered in direct‑drive and belt‑drive configurations with multiple blade‑angle options for flexible selection.
The product line is certified by international bodies (AMCA, CCCf, TUV, UL, RoSH) and includes detailed performance curves, noise data, dimensions, weight tables, and optional accessories such as rain covers, vibration isolators, and flexible connectors. Certifications and testing procedures are described, along with guidance for selecting the appropriate model based on airflow and pressure requirements. This manual is written in Chinese.
| Nominal wheel diameter | 710 mm |
|---|---|
| Motor power | 0.55 kW |
| Balancing level | G2.5 (AMCA 204) |
| Drive type | Direct drive (D) or Belt drive (B) |
| Certifications | AMCA, CCCf, TUV, UL, RoSH |
The YFIMF fan is certified by AMCA, CCCf, TUV, UL, and RoSH.
The wheel achieves a balancing level of G2.5 according to AMCA 204 standards.
The fan is offered in direct‑drive (D) and belt‑drive (B) versions, each with multiple blade‑angle selections.
The nominal wheel diameter is 710 mm.
