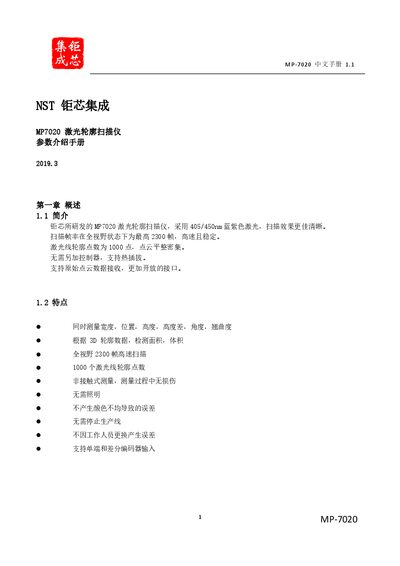

The Juxin MP7020 laser profilometer user manual provides specifications, safety guidelines, installation instructions, and operating details.
The MP7020 laser profilometer from Juxin uses a 405/450 nm blue‑violet laser to deliver high‑frame‑rate, high‑density point clouds for non‑contact industrial measurement. It supports hot‑plug operation and provides raw point‑cloud data via an open GigE interface.
This manual covers product specifications, safety and handling precautions, installation environment requirements, wiring and power connections, as well as storage and maintenance recommendations. This manual is written in Chinese.
| Measurement range (Z‑axis height) | 4.0 mm ±2.6 mm |
|---|---|
| Measurement range (X‑axis width) | 10.0 mm |
| Sampling frequency (full view) | 2300 frame/s |
| Laser line points | 1000 points |
| Wavelength | 405 nm |
| Output power | 10 mW |
| Data interface | GigE (Gigabit Ethernet) |
| Operating temperature | 0 °C to +50 °C |
| Operating humidity | 20 % to 85 % (no condensation) |
| Input voltage | +12 V to +24 V |
| Enclosure protection rating | IP67 |
The MP7020 is classified as a 2M laser product.
Read the user manual, ensure the correct power voltage, keep the device away from water, dust, high temperature, corrosive or flammable gases, and avoid vibration or impact.
The device can capture up to 2300 frames per second in full‑view mode.
The MP7020 operates on an input voltage of +12 V to +24 V.
