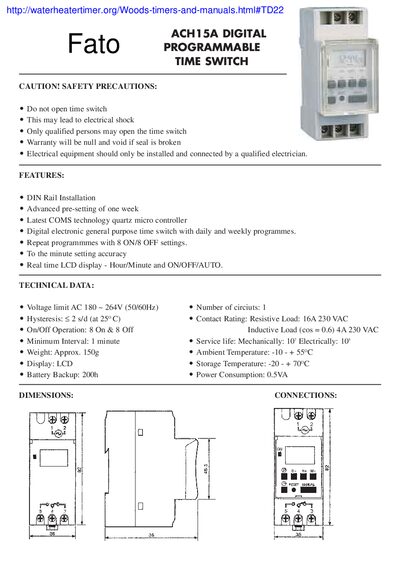

The Fato FatoFFACH15A user manual provides safety, installation, programming and operation instructions for the digital programmable time switch.
The manual begins with safety precautions, emphasizing that only qualified personnel should install or open the timer and that breaking the seal voids the warranty. It then lists key features such as DIN‑rail mounting, a quartz micro‑controller, LCD display and 8 ON/8 OFF programmable slots.
Operating instructions cover connecting the unit to a 230 V mains supply, charging the internal battery, setting the clock, programming ON/OFF times for each day, and using the manual override. Detailed step‑by‑step key sequences are provided for setting start and stop times, selecting days, and completing the program.
| Voltage range | AC 180 ~ 264 V (50/60 Hz) |
|---|---|
| Number of circuits | 1 |
| Hysteresis | ≤2 s/d (at 25 °C) |
| Resistive load rating | 16 A 230 V AC |
| Inductive load rating | 4 A 230 V AC (cos = 0.6) |
| Minimum interval | 1 minute |
| Battery backup | 200 hours |
| Ambient temperature range | -10 °C to +55 °C |
The device operates on an AC supply from 180 V to 264 V at 50 Hz or 60 Hz.
