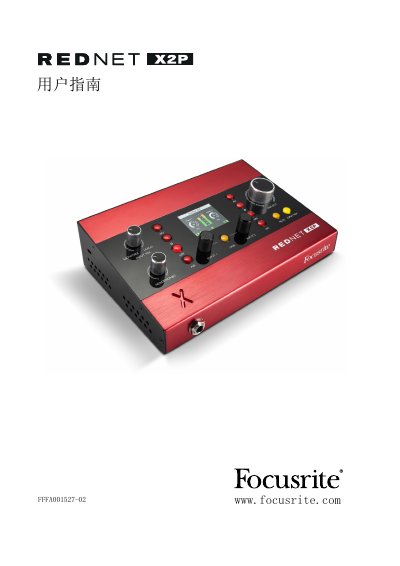

The guide explains installation, connections, features and operation of the Focusrite RedNet X2P Dante audio interface.
The Focusrite RedNet X2P is a Dante‑enabled audio interface with two local mic/line/instrument preamp channels and two high‑quality digital‑to‑analog conversion channels, offering independent headphone and line outputs. It is housed in a compact aluminum chassis with front‑panel LCD status display and rear‑panel Ethernet and analog connectors.
This user guide covers unpacking, power options (PoE or 12 V DC), front‑panel controls, rear‑panel connections, physical specifications, performance specifications, firmware updates, troubleshooting, warranty information and how to register the product.
| Gain range | 0‑68 dB |
|---|---|
| Input impedance (mic/line) | 6.2 kΩ |
| Frequency response | 20 Hz – 35 kHz ±0.1 dB |
| Power consumption (DC) | 13.32 W |
| PoE voltage/current | 37‑57 V @ 1‑2 A |
| Supported sample rates (24‑bit) | 44.1, 48, 88.2, 96 kHz |
| Dimensions | 145.7 mm × 60.6 mm × 203.6 mm |
| Weight | 1.04 kg |
Each local input gain encoder provides a gain range of 0 dB to 68 dB in 1 dB steps.
