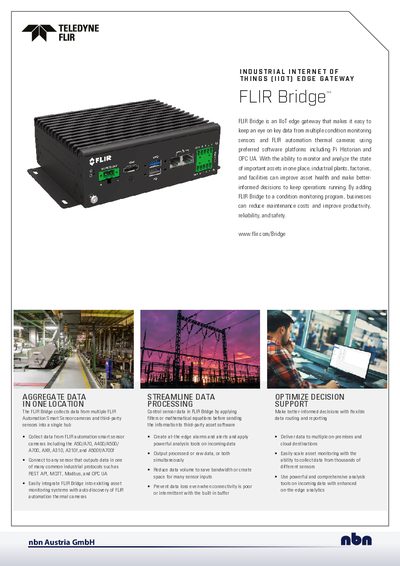

The FLIR Bridge IIoT edge gateway aggregates sensor data, runs Ubuntu Linux, and supports multiple industrial protocols.
The FLIR Bridge is a fanless, palm‑size industrial computer that collects data from FLIR automation cameras and third‑party sensors. It runs Linux Ubuntu 18.04 and offers built‑in analytics, flexible routing, and edge alarms.
Key hardware includes an Intel Atom E3815 or ARM Cortex‑A57 CPU, 4 GB DDR3L memory, up to 32 GB eMMC storage, dual Gigabit Ethernet, USB 3.0/2.0, HDMI, Wi‑Fi 802.11ac, and Bluetooth 4.2. Power is supplied from 10‑30 VDC (19‑24 V typical).
| CPU | Intel Atom E3815 single core 1.46 GHz or 4‑core ARM Cortex‑A57 |
|---|---|
| Memory | 4 GB DDR3L |
| Storage | 32 GB eMMC (or 16 GB eMMC for Pro) |
| Operating system | Linux Ubuntu 18.04 |
| LAN ports | 2 × RJ45 Gigabit Ethernet |
| USB ports | 1 × USB 3.0, 1 × USB 2.0 |
| Display output | 1 × HDMI (1080p @ 60 Hz) or 1 × HDMI (4K @ 60 Hz) on Pro |
| Wi‑Fi | 802.11 a/b/g/n/ac, 2 T2R, BT 4.2 |
| Power requirements | 10‑30 VDC (typical 19‑24 V, 1.5 A‑1.18 A) |
| Operating temperature | 0 °C to 50 °C (‑10 °C to 60 °C for Pro) |
| Weight | 0.5 kg (Bridge) / 1.2 kg (Bridge Pro) |
| Dimensions | 100 × 70 × 30 mm (Bridge) / 147 × 118 × 52 mm (Bridge Pro) |
Up to five sensors can be connected simultaneously, limited by bandwidth and CPU power.
The device runs Linux Ubuntu 18.04.
It requires 10 to 30 VDC, typically 19 to 24 V at 1.5 A to 1.18 A.
Supported protocols include REST API, MQTT, Modbus, and OPC‑UA.
