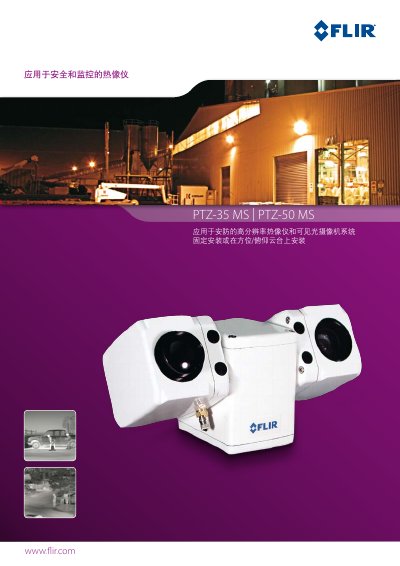

This document introduces the PTZ-35 MS and PTZ-50 MS thermal imagers produced by FLIR. These thermal imagers can be used for security and surveillance applications. They feature high resolution, clear thermal images, and advanced thermal imaging software. These imagers can be integrated with white light/low light cameras to provide sharp and clear thermal images. They have a compact and lightweight design, suitable for harsh environments, and can be integrated with existing CCTV systems through various installation methods. Thermal imagers have wide applications in security and surveillance.
The PTZ-35 MS and PTZ-50 MS are high‑resolution thermal imaging cameras with integrated white‑light/low‑light video, designed for fixed or pan‑tilt‑zoom mounting in security and monitoring applications. They combine a long‑wave uncooled microbolometer detector with a 26× optical zoom camera in a rugged, IP66‑sealed housing.
This manual covers technical specifications, multiple installation methods (analog RS‑232/RS‑422 with Pelco‑D commands and TCP/IP network integration), operation of the pan‑tilt‑zoom unit, optional joystick display, and environmental ratings. It also includes wiring diagrams, power requirements, and handling instructions for reliable use in harsh conditions. This manual is written in Chinese.
| Detector type | FPA, uncooled microbolometer |
|---|---|
| Image resolution | 320×240 pixels |
| Spectral range | 7.5–13 µm |
| Field of view (PTZ‑35 MS) | 20° × 15° (NTSC) |
| Field of view (PTZ‑50 MS) | 14° × 10° (NTSC) |
| Spatial resolution (IFOV) | 1.1 mrad (PTZ‑35 MS) / 0.8 mrad (PTZ‑50 MS) |
| Temperature sensitivity | 85 mK at 25 °C |
| Power consumption | < 50 W (25 °C) |
| Operating temperature range | -32 °C to +55 °C |
| Weight | < 5.0 kg |
| Optical zoom (white‑light camera) | 26× |
| Electronic zoom | up to 12× |
| Pan range | ±200° |
| Tilt range | ±60° |
Both models operate from –32 °C up to +55 °C.
The white‑light camera has a 26× optical zoom lens.
The thermal sensor provides images at 320 × 240 pixels.
