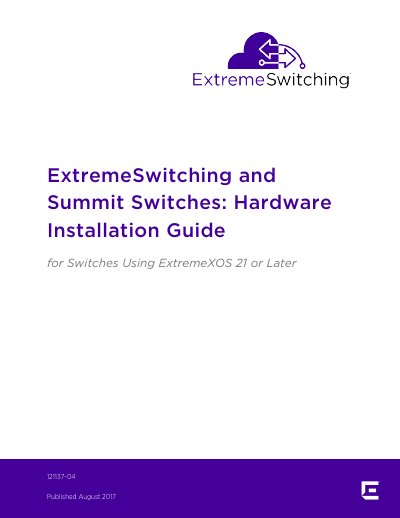

Extreme Networks ExtremeSwitching and Summit Switches Hardware Installation Guide

About this manual

This document serves as a hardware installation guide for the Extreme Networks ExtremeSwitching and Summit switch families. It provides instructions for installing various models including the X440-G2, X450-G2, X460-G2, X620, X670-G2, X690, X770, and X870 series using ExtremeXOS 21 or later. The guide is intended for network administrators with basic knowledge of LANs and Ethernet concepts.

What's inside

• Overview of the Switches
• Power supplies
• Option Cards and Versatile Interface Modules
• Site Preparation
• Building Stacks
• Installing ExtremeSwitching and Summit Switches
• Replacing AC Power Supplies
• Replacing DC Power Supplies
• Replacing Fan Modules

Specifications

Frequently asked questions

Who is the intended audience for this guide?

This guide is intended for use by network administrators responsible for installing and setting up network equipment.

What prior knowledge is assumed?

The guide assumes a basic working knowledge of local area networks (LANs), Ethernet concepts, Ethernet switching and bridging concepts, routing concepts, SNMP, and basic equipment installation procedures.
