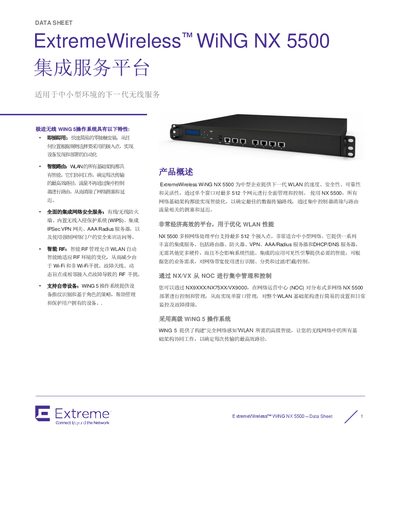

Data sheet for the Extreme Networks WiNG NX 5500 integrated service platform, detailing features, specifications, and licensing options for medium-sized…
The Extreme Networks WiNG NX 5500 Integrated Service Platform is a next-generation wireless service platform designed for medium-sized enterprise environments. It provides high-speed, secure, reliable, and flexible WLAN solutions supporting up to 512 access points. The platform features the ExtremeWireless WiNG 5 operating system, which offers plug-and-play deployment, intelligent routing, comprehensive integrated security services, and intelligent RF management. This manual is written in Chinese.
| Dimensions | 1U, Rack-mountable, 16.93 inches wide x 1.74 inches high x 12.63 inches deep |
|---|---|
| Weight | 10 lbs / 4.5 kg |
| Memory | 4 GB RAM |
| Storage | 32 GB SSD |
| Power Supply | 100 Watts, 100-240V AC PSU |
| Power Consumption | 30 Watts |
| Supported Access Points (Local Bridging) | 512 |
| Supported Access Points (Extended VLAN) | 256 |
| Data Throughput | 6 GB/sec |
| Encryption Throughput | 2 GB/sec |
| RF Domains | 512 |
| WLANs | 256 |
| Wireless Clients | 16K |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
| Storage Temperature | -4° F to 158° F / -20° C to 70° C |
The platform supports up to 512 access points for local bridging and 256 for extended VLANs.
It utilizes the ExtremeWireless WiNG 5 operating system.
The unit is 1U rack-mountable with dimensions of 16.93 inches wide x 1.74 inches high x 12.63 inches deep.
