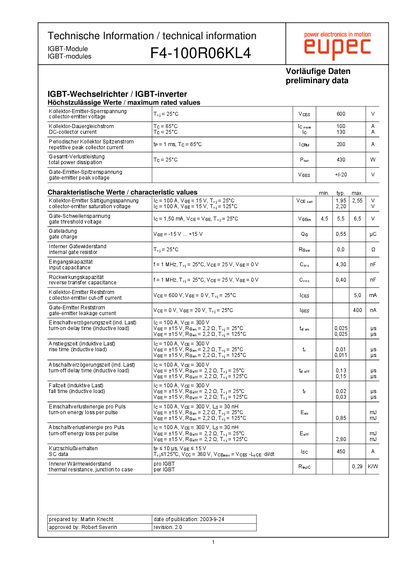

Technical data sheet for the Eupec F4-100R06KL4 IGBT module, including electrical, thermal and mechanical specifications.
The Eupec F4-100R06KL4 IGBT module is described with its maximum rated values, preliminary data and characteristic electrical parameters. Key figures such as collector‑emitter voltage, continuous and peak currents, and power dissipation are listed.
Mechanical details cover insulation test voltage, creepage and clearance distances, mounting torque, weight and package dimensions. Thermal information includes junction‑to‑case resistance and maximum junction temperature. The sheet ends with a circuit diagram and usage terms. This manual is written in German.
| Collector‑Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current (Ic nom) | 100 A |
| Peak Collector Current (tp=1ms, 65°C) | 200 A |
| Total Power Dissipation (Prot) at 25°C | 430 W |
| Gate‑Emitter Peak Voltage (VGE) | 20 V |
| Junction‑to‑Case Thermal Resistance (RθJC) | 0.29 K/W |
| Maximum Junction Temperature (Tj max) | 150 °C |
| Mounting Torque (M5 screw) | 6 Nm |
| Weight | 180 g |
The module is rated for a maximum collector‑emitter voltage of 600 V.
It can carry a continuous collector current of 100 A at 25 °C.
The junction‑to‑case thermal resistance is 0.29 K/W per IGBT.
The module requires a mounting torque of 6 Nm on an M5 screw and weighs 180 g.
