This document is about the technical specifications of TZ150N BIP AC

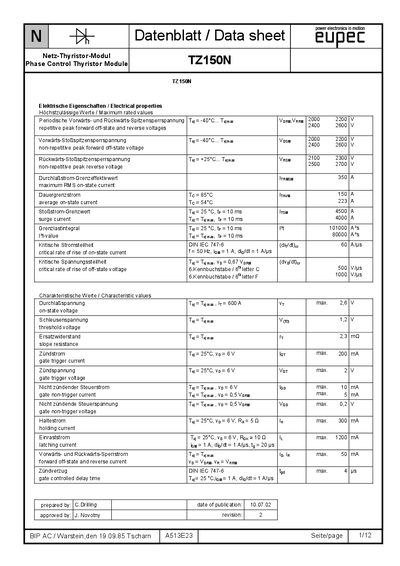

This document is a technical datasheet for the BUPeEC TZ150N Phase Control Thyristor Module. It provides comprehensive specifications regarding maximum rated values, characteristic parameters such as trigger currents and voltages, and critical rates of rise for current and voltage.
The datasheet also includes detailed thermal properties, including junction-to-case and case-to-heatsink thermal resistance values. It features analytical data for transient thermal impedance under both natural and forced cooling conditions, along with performance curves for on-state power loss and maximum allowable case temperature relative to current load.
| Repetitive peak forward off-state voltage (Vrrm) | 2400 V |
|---|---|
| Average on-state current at Tc = 85°C (Irav) | 150 A |
| Thermal resistance, case to heatsink per arm (RthCS) | 0.04 °CA/W |
The maximum allowable junction temperature is 125 °C.
The required mounting torque tolerance is + 15% M1 5 Nm.
