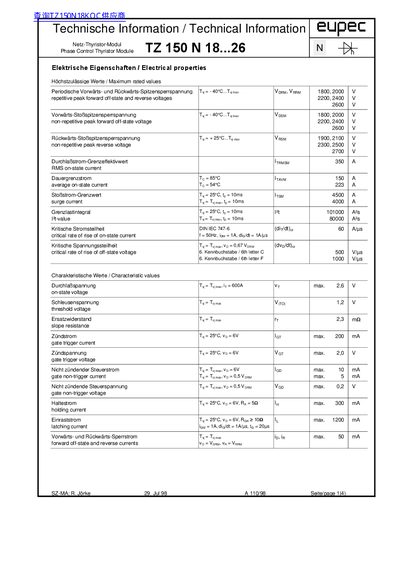

This document describes the electrical properties and maximum rated values of the Netz-Thyristor-Modul Phase Control Thyristor Module TZ 150 N 18.26 N.
This technical information sheet provides detailed specifications for the EUPEC TZ 150 N phase control thyristor module. It lists maximum rated values, electrical characteristics such as on‑state current and voltage, and characteristic values like gate trigger current.
Thermal and mechanical data are also included, with thermal resistance values, operating and storage temperature ranges, mounting torque specifications, and the module's weight. The document is intended for engineers selecting and applying the component in power electronics designs. This manual is written in German.
| RMS on-state current | 350 A |
|---|---|
| On-state voltage (max) | 2.6 V |
| Gate trigger current | 200 mA |
| Thermal resistance, junction‑to‑case | 0.124 °C/W |
| Weight | 900 g |
| Storage temperature range | -40 °C … 130 °C |
The maximum RMS on‑state current is 350 A.
The on‑state voltage is specified up to 2.6 V.
The gate trigger current is 200 mA.
The junction‑to‑case thermal resistance is 0.124 °C/W.
