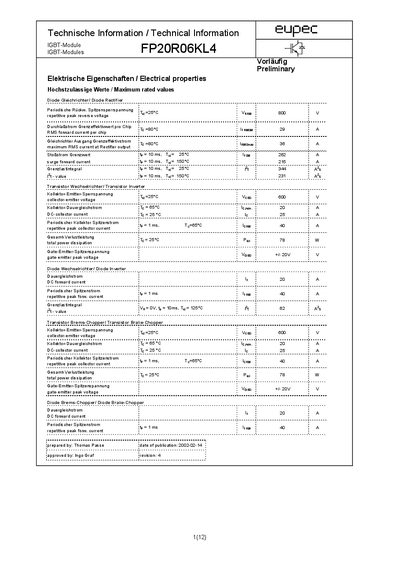

This is a technical information sheet for the FP20R06KL4 IGBT module. The table lists the module's maximum rated values and electrical properties.
The EUpec FP20RO6KL4 is an IGBT power module presented with detailed electrical characteristics such as maximum reverse voltage, forward current limits, and gate threshold values. The sheet also provides typical performance curves for inverter operation and switching losses.
Thermal and mechanical data include junction‑to‑case resistance, storage temperature range, weight, and mounting force requirements. Package dimensions and pin layout are listed for PCB integration, along with a circuit diagram and safe operating area chart. This manual is written in German.
| Weight | 36 g |
|---|
The typical forward voltage is 0.95 V at 150 °C.
The module weighs approximately 36 grams.
