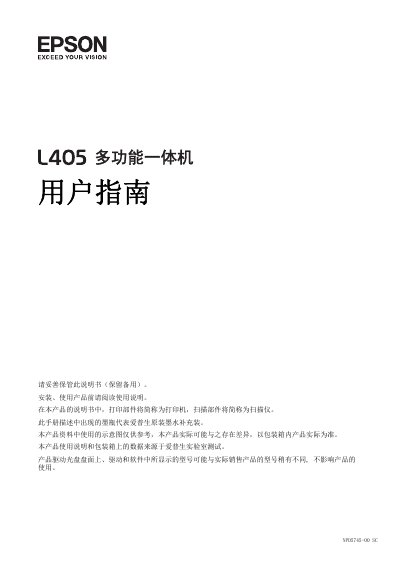

This manual explains how to set up, operate, maintain, and troubleshoot the Epson NPD5745-00 printer and scanner.
The Epson NPD5745-00 User Guide provides step‑by‑step instructions for installing the device, configuring network connections, and using printing, scanning, and copying functions. It also includes safety warnings, ink‑refill procedures, and detailed troubleshooting tips.
Key sections cover safety guidelines, network setup (Wi‑Fi, Wi‑Fi Direct, PIN), paper handling, print and scan operations, ink replacement, routine maintenance, software/driver installation, and a full list of technical specifications. This manual is written in Chinese.
| Print head nozzle configuration (black) | 180 |
|---|---|
| Print head nozzle configuration (each color) | 59 |
| Supported paper weight (plain paper) | 64‑90 g/m² (17‑24 lb) |
| Printable area on single‑sided paper (width) | 3.0 mm (0.12 in) |
| Printable area on single‑sided paper (height) | 40.0 mm (1.57 in) |
The specifications list plain paper weight from 64 g/m² to 90 g/m² (17 lb‑24 lb) and envelope weights from 75 g/m² to 90 g/m².
From the control panel select the option “从操作面板恢复网络设置” to reset all network configurations.
