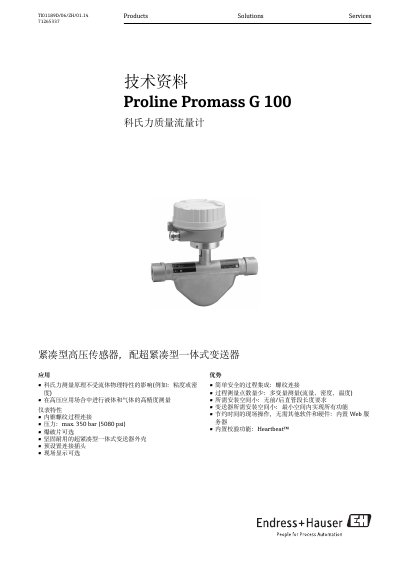

This manual covers the operation, installation, and technical specifications of the Endress+Hauser Proline Promass G 100 compact high-pressure Coriolis mass…
The Proline Promass G 100 is a compact high-pressure sensor equipped with an ultra-compact integrated transmitter. It utilizes the Coriolis measurement principle to measure liquid and gas flows with high precision, independent of fluid physical properties such as viscosity or density.
The instrument measures multiple variables including mass flow, density, and temperature directly. It features a robust design suitable for high-pressure applications up to 350 bar (5080 psi) and offers various output signals including 4...20 mA HART, pulse/frequency/switching outputs, PROFIBUS DP, Modbus RS485, and Industrial Ethernet (EtherNet/IP). This manual is written in Chinese.
| Maximum Pressure | 350 bar (5080 psi) |
|---|---|
| Process Connection Type | Internal cone thread |
| Measurement Variables | Mass flow, Density, Temperature |
| Flow Range Ratio | > 1000 : 1 |
The instrument operates based on the Coriolis force measurement principle, which measures mass flow directly.
No, it does not require any upstream or downstream straight pipe lengths.
The device supports a maximum process pressure of 350 bar (5080 psi).
