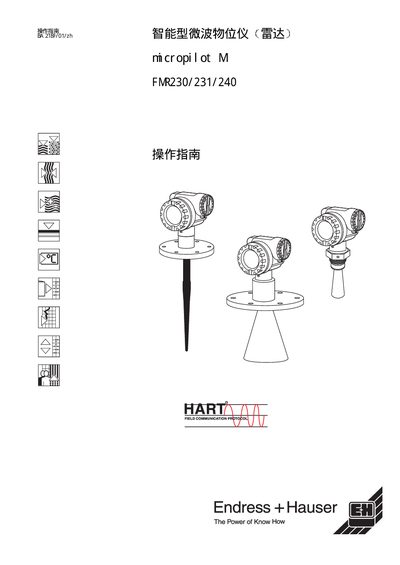

This user manual provides installation, operation, and maintenance instructions for the Endress+Hauser Micropilot FMR230/231/240 radar level transmitter.
The document is a comprehensive operating guide for the Micropilot M FM230/231/240 series of integrated radar level transmitters. These devices are designed for continuous non-contact measurement of liquids and bulk solids in various industrial applications, including hazardous areas.
The manual covers safety guidelines, installation procedures using tools like TOFTOOL and HART, detailed operation modes (including display units VLB31 and VB31), configuration settings via communication protocols such as HART and Foundation Fieldbus, and troubleshooting steps for common faults. This manual is written in Chinese.
The maximum average power output is 1 mW.
The operating frequency is approximately 6 GHz.
The maximum operating pressure is 100 bar.
