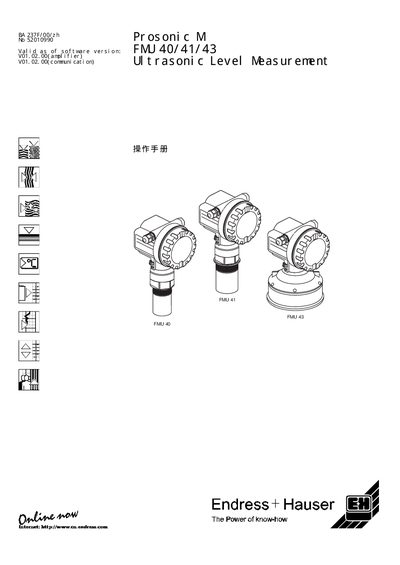

Endress+Hauser Prosonic M FMU40/FMUM41/FMUM43 Ultrasonic Level Measurement Operating Manual

Prosonic M FMU40/41/43 Ultrasonic Level Measurement Operation Manual, introduces the installation, debugging, fault analysis, maintenance and repair of the product

Brand: Endress+Hauser
Document type: User Manual
Language: Chinese
Pages: 38
File format: PDF
File size: 2.4 MB
Updated: 30 September, 2023
MD5 checksum: 8C222AFA8C2814E0FCAA6E2ED263367D
PDF: Endress+Hauser Prosonic M FMU40/FMUM41/FMUM43 Ultrasonic Level Measurement Operating Manual PDF

About this manual

This manual provides installation, configuration, operation and maintenance instructions for the Prosonic M FMU40, FMU41 and FMU43 ultrasonic level measurement sensors. It includes safety information, wiring diagrams, communication settings and troubleshooting guidance.

The document also contains technical specifications such as measurement ranges, output current options and supported fieldbus protocols (HART, Profibus PA, Foundation Fieldbus). All instructions are presented in Chinese with English technical terms where applicable. This manual is written in Chinese.

What's inside

Safety Information
Installation
Operation
Configuration
Diagnostics
Maintenance
Technical Specifications
Communication Settings
Troubleshooting

Specifications

Maximum measurement distance (FMU40)	5 m
Maximum measurement distance (FMU41)	8 m
Maximum measurement distance (FMU43)	15 m

Frequently asked questions

What is the maximum measurement distance for the FMU43 sensor?

The FMU43 can measure up to 15 meters.
