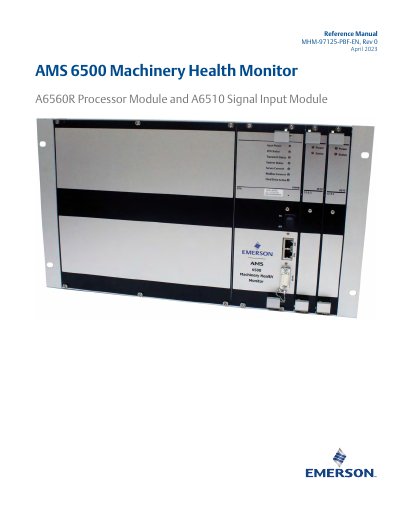

Reference manual for the Emerson AMS 6500 Machinery Health Monitor covering installation, configuration, cabling, and specifications for the A6560R…
This document serves as a reference manual for the AMS 6500 Machinery Health Monitor system, specifically detailing the setup and operation of the A6560R Processor Module and the A6510 Signal Input Module. It provides comprehensive guidance on sensor installation, enclosure mounting, and cabling requirements to ensure proper hardware integration.
| DC Input Voltage Range | 18–31 VDC (24 VDC nominal) |
|---|---|
| Maximum Power Dissipation | 30 W with Transient |
| Power Ground Requirement | Isolated (from production equipment) |
The nominal DC input voltage is 24 VDC.
No, you must use separate power supplies or a supply with isolated outputs.
