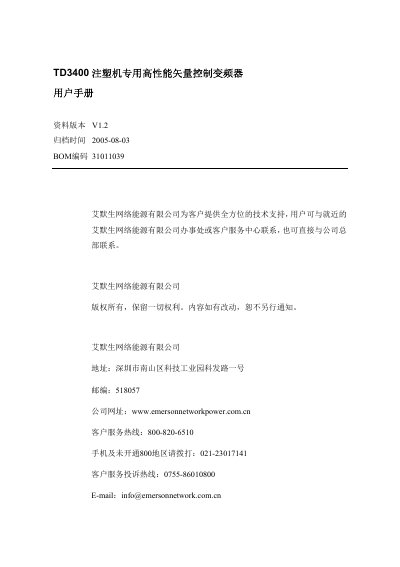

The Emerson TD3400 VFD user manual provides operation, wiring, parameter settings, installation and maintenance instructions.
This manual covers safety precautions, technical specifications, and functional descriptions for the Emerson TD3400 variable frequency drive. It includes detailed wiring diagrams, parameter tables, and guidance on proper installation and commissioning.
Additional sections describe routine maintenance, fault diagnosis, and EMC compliance, helping users to configure the drive, adjust performance parameters, and troubleshoot common issues. This manual is written in Chinese.
| Power rating | 75 kW |
|---|---|
| Input voltage | 380 V / 400 V |
| Output current | 157 A |
| Model variants and ratings | TD3400‑4T0750J – 75 kW, 157 A, 152 A, 100 kVA |
