User manual for the DJI DT7 remote controller and DR16 receiver, covering operation, charging, and Robomaster vehicle control protocol.

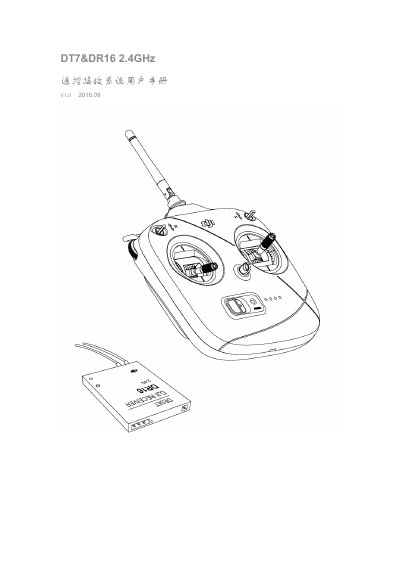

This manual provides instructions for the DJI DT7 & DR16 2.4GHz Remote Control System, which includes a DT7 remote controller and a DR16 receiver. The system is designed to control RM vehicles and DJI flight products, offering a maximum control range of 1000 meters in open outdoor environments and a battery life of up to 12 hours. This manual is written in Chinese.
| Operating Frequency | 2.4 GHz ISM |
|---|---|
| Communication Range (Open Outdoor) | 1 km |
| DT7 Battery Capacity | 3.7 V 2000 mAh |
| DR16 Working Current/Voltage | 145 mA @ 5 V |
| DR16 Power Supply Range | 4 - 8.4 V |
| DR16 Dimensions | 41 mm x 29 mm x 5 mm |
| DBUS Baud Rate | 100Kbps |
| DBUS Data Length | 8 bits |
In open outdoor environments, the maximum control range is 1000 meters.
The longest working time can reach 12 hours.
The DR16 receiver operates at a frequency of 2.4 GHz.
The DBUS communication baud rate is 100Kbps.
