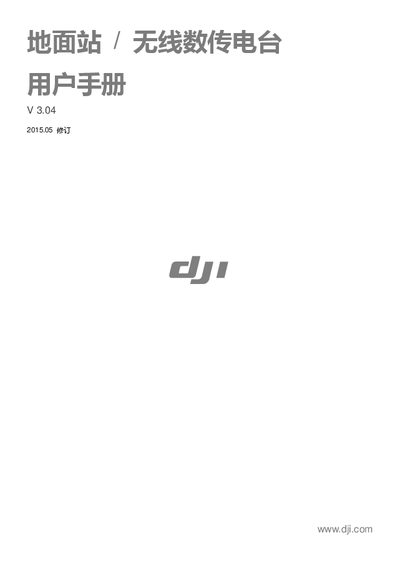

User manual for DJI Ground Station and wireless data transmission radio, covering setup, operation, and specifications.
This manual provides detailed instructions for using DJI's Ground Station and wireless data transmission radio. It includes safety precautions, hardware connections, software installation, and operation modes such as observation, joystick/keyboard, click, waypoint, and autonomous landing.
The document also lists troubleshooting steps, LED indicator meanings, radio specifications for both 2.4 GHz and 900 MHz models, and special‑area flight restrictions required by civil aviation regulations. This manual is written in Chinese.
| Wireless transmission rate (2.4 GHz) | 700 kbps |
|---|---|
| Indoor communication distance (2.4 GHz) | ≤500 m |
| Outdoor communication distance (2.4 GHz) | ≤3 km |
| Transmit power (2.4 GHz) | 130 mW |
| Receive sensitivity (2.4 GHz) | -95 dBm |
| Power consumption (ground unit, 2.4 GHz) | 550 mW |
| Operating frequency (2.4 GHz) | 2400 MHz–2483 MHz |
| Operating temperature range | -40 °C to +85 °C |
| Dimensions (ground unit) | 70 mm × 48 mm × 17 mm |
| Weight (ground unit) | 55 g |
| Power voltage range | 4.5 V to 12 V |
| FCC certification | Yes |
The indoor (city) communication distance for the 2.4 GHz radio is up to 500 meters.
It supports 2.4 GHz (2400 MHz–2483 MHz) and 900 MHz (902 MHz–928 MHz) bands.
