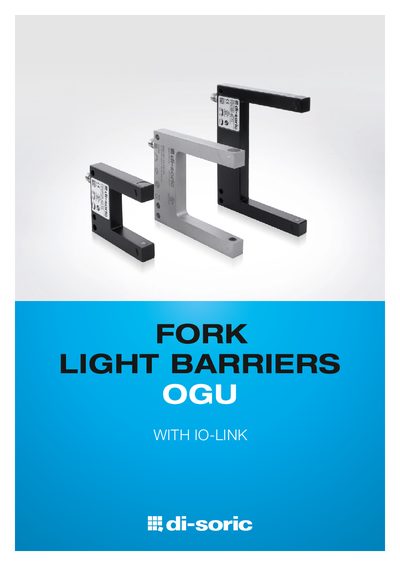

The di-soric OGU fork light barriers with IO-Link provide flexible, high‑precision detection across fork openings of 10‑250 mm, with four sensor modes and…
The OGU series from di‑soric are fork light barriers that use red‑light or infrared LEDs to detect objects with high speed and accuracy. They can be configured via IO‑Link, offering four selectable sensor modes – Standard, High Resolution, Power and Speed – and feature a rugged powder‑coated metal housing with IP67 protection.
Technical data include fork openings from 10 mm to 250 mm, switching frequencies up to 14 000 Hz, a smallest detectable part size of 0.2 mm, reproducibility of 0.02 mm, and a push‑pull/pnp/npn output adjustable via IO‑Link. The devices are compatible with existing OGU models and support diagnostics and parameter configuration through the IO‑Link Smart Sensor profile.
| Fork openings | 10–250 mm |
|---|---|
| Switching frequency | up to 14 000 Hz |
| Smallest detectable part | 0.2 mm |
| Reproducibility | 0.02 mm |
| Protection class | IP67 |
| Interface | IO‑Link V1.1 |
| Output type | Push‑pull / pnp / npn, 100 mA |
The Speed mode can operate at a switching frequency of up to 14 000 Hz.
The smallest detectable part size is 0.2 mm in the High Resolution mode.
Yes, they have an IP67 rating and a powder‑coated metal housing.
