OGWSD 100 P3K-TSSL Photoelectric sensor is a photoelectric sensor produced by di-soric company of Germany. It has anti-collision function and can be used in industrial automation control.

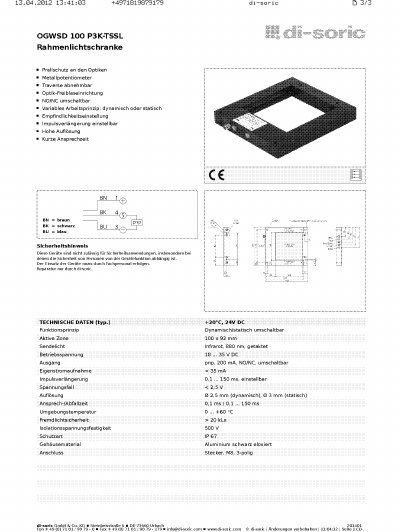

This document is a technical datasheet (Technische Daten) for the Di-Soric OGWSD 100 P3K-TSSL, an infrared safety light curtain with prismatic protection. The device features a dynamic or static switching principle, a 100 mm active zone, and includes a removable traverse and metal potentiometer for sensitivity adjustment.
Key technical specifications include an operating voltage of 18-35 VDC, a PNP output switchable between NO/NC, and an adjustable pulse extension up to 150 ms. The device offers high resolution with 2.5 mm dynamic and 3 mm static detection ranges, housed in black anodized aluminum with IP6X protection. This manual is written in German.
| Active Zone | 100 mm |
|---|---|
| Wavelength | 880 nm |
| Operating Voltage | 18-35 VDC |
| Output Type | pnp, 200 mA |
| Pulse Extension Range | 0.1 - 150 ms |
| Dynamic Resolution | 2.5 mm |
| Static Resolution | 3 mm |
| Response Time | < 10 ms |
| Operating Temperature | -20 to +60 C |
| Protection Class | IP 6X |
No, these devices are not permitted for safety applications where personal safety depends on the device function.
Repairs must be performed only by Di-Soric.
