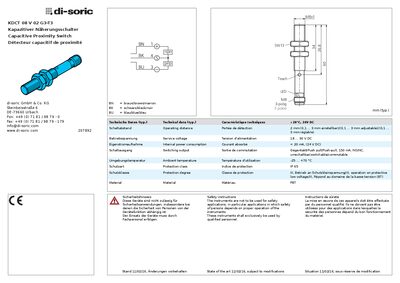

Technical data, safety instructions, and operating guide for the di-soric KDCT 08 V 02 G3- T3 capacitive proximity switch.
The KDCT 08 V 02 G3- T3 is a capacitive proximity switch designed for detection distances from 2 mm up to 3 mm and operation in harsh environments (IP65, protection class III). It runs on a service voltage of 18‑30 V DC and consumes less than 20 mA of internal power.
The manual provides safety information, detailed technical specifications, and step‑by‑step instructions for setting the switching point (Teach procedure) and changing the output mode between NO and NC. LED indications and mounting guidelines are also described. This manual is written in German.
Press the Teach button with the tool for at least 2 seconds; the LED flashes, then release to store state 1. Press the Teach button again within 20 seconds for less than 1 second to store state 2.
Hold the Teach button for longer than 6 seconds; the LED flashes three times, then release to toggle the output mode.
