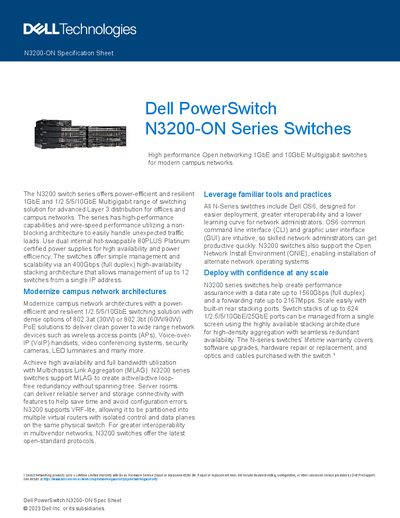

The Dell PowerSwitch N3200-ON Specification Sheet details hardware, performance, power, and networking features of the N3200 series switches.
The Dell PowerSwitch N3200-ON series provides power‑efficient, resilient 1GbE and 1/2.5/5/10GbE multigigabit switching for modern campus networks. It supports high‑performance, non‑blocking architecture, dual hot‑swappable 80PLUS Platinum power supplies, and a 400 Gbps stacking bandwidth that can manage up to 12 switches from a single IP address.
Management is available via Dell OS6 CLI, GUI, SNMP, and USB auto‑configuration. The switches offer extensive Layer 3 routing, VRF‑lite, MLAG, PoE (802.3at/802.3bt), and a full set of security and QoS features, making them suitable for offices, data centers, and multivendor environments.
| 1GbE ports | up to 48 line‑rate ports |
|---|---|
| Stacking bandwidth | 400 Gbps |
| Power consumption (max) | 900 W (N3208PX‑ON) |
| Power supply efficiency | 87 % or better |
The N3200 series provides a 400 Gbps stacking bandwidth using two 100 GbE QSFP28 integrated rear stacking ports.
The switches operate from 32 °F to 113 °F (0 °C to 45 °C).
