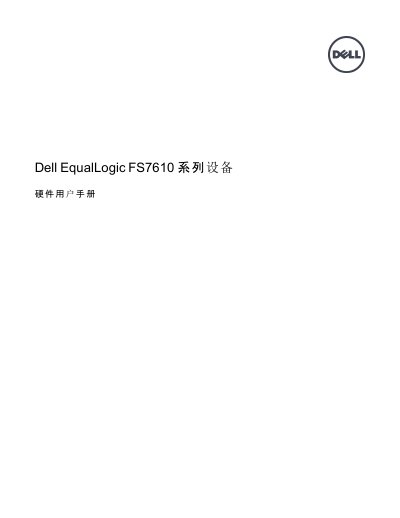

This manual provides maintenance and troubleshooting procedures for replaceable components of the Dell EqualLogic FS7610 NAS storage system.
The Dell EqualLogic FS7610 Hardware User Manual is intended for hardware administrators responsible for maintaining and servicing the FS7610 NAS device. It explains how to safely replace customer‑replaceable components such as front‑panel panels, fans, controllers, power supplies, and SFP+ transceivers.
The document includes safety warnings, required tools, step‑by‑step replacement instructions, power‑connection guidelines, technical specifications, a glossary of NAS terminology, and references to further Dell EqualLogic documentation. This manual is written in Chinese.
| Power Output | 717 W |
|---|---|
| Input Voltage | 90‑264 VAC |
| Battery Voltage | 12.8‑13.2 V |
| Height | 86.4 mm |
| Width | 481.5 mm |
| Maximum Weight (configured) | 30.5 kg |
| Operating Temperature | 5 °C to 40 °C |
| Storage Temperature | 40 °C to 60 °C |
Only qualified support personnel should perform the replacement. Press and hold the service button for 10 seconds to generate an SCI, then follow the uninstall and install procedures described in the manual.
Each power supply provides up to 717 W and accepts an input voltage range of 90 VAC to 264 VAC.
The unit is 86.4 mm high, 481.5 mm wide, and 446.3 mm deep when mounted in a rack.
