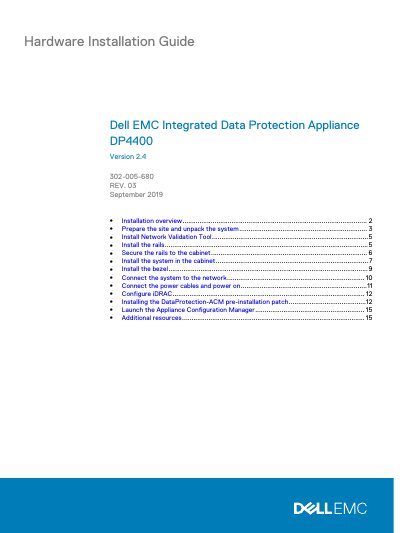

Dell EMC DP4400 Hardware Installation Guide

About this manual

This document serves as a hardware installation guide for the Dell EMC Integrated Data Protection Appliance (IDPA) DP4400, version 2.4. It is designed for personnel responsible for installing and maintaining digital storage equipment. The guide outlines a specific sequence of actions to prepare the site, unpack the system, install network validation tools, mount rails, secure the appliance in a cabinet, connect power and network cables, and configure iDRAC.

What's inside

• Installation overview
• Prepare the site and unpack the system
• Install Network Validation Tool
• Install the rails
• Secure the rails to the cabinet
• Install the system in the cabinet
• Install the bezel
• Connect the system to the network

Specifications

Frequently asked questions

What network protocol does the DP4400 support?

The appliance is compatible with IPv4 enabled networks and does not support pure IPv6 or dual-stack networks.

What specific screwdriver is required to install the rails?

You must use a Phillips-head screwdriver with a magnetic tip to install the rails.

How many IP addresses are required for the initial configuration?

You must identify 13 unassigned IP addresses for the IDPA components.

What type of Ethernet cable is needed for the 1 GbE service port?

You must use a Cat5e or Cat6 UTP copper Ethernet cable to connect the 1 GbE port.
