A concise guide that lists key specifications, workloads and security features for Dell EMC PowerEdge rack servers.

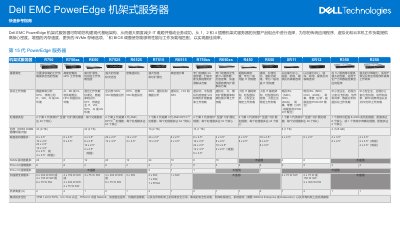

The Quick Reference Guide provides an overview of Dell EMC PowerEdge rack servers, highlighting important attributes such as high‑core density, enhanced memory speed, NVMe storage options and BIOS tuning for optimal performance. It lists the supported server models, target workloads and key hardware options.
The document also details processor choices, memory capacity, storage configurations, PCIe slots, accelerator support, rack height options and integrated security features, helping IT professionals select the right server for their environment. This manual is written in Chinese.
| Processor options | 2nd/3rd‑gen Intel Xeon Scalable (up to 40 cores) or AMD EPYC (up to 64 cores) |
|---|---|
| Maximum memory | 32 DDR4 DIMM slots, up to 8 TB |
| Maximum 2.5" drives | 8 drives |
| Maximum NVMe drives | 24 drives |
| PCIe 4.0 slots | Up to 8 slots |
| Accelerator support | 2 × 300 W DW or 4 × 150 W SW |
| Rack height | 1U or 2U |
| Integrated security | TPM 1.2/2.0, FIPS, CC‑TCG certification, TPM 2.0 |
They support 2nd‑ and 3rd‑generation Intel Xeon Scalable processors (up to 40 cores) and AMD EPYC processors (up to 64 cores).
Up to 24 NVMe drives can be installed.
The servers are offered in 1U and 2U configurations.
Integrated security includes TPM 1.2/2.0, FIPS, CC‑TCG certification and TPM 2.0.
