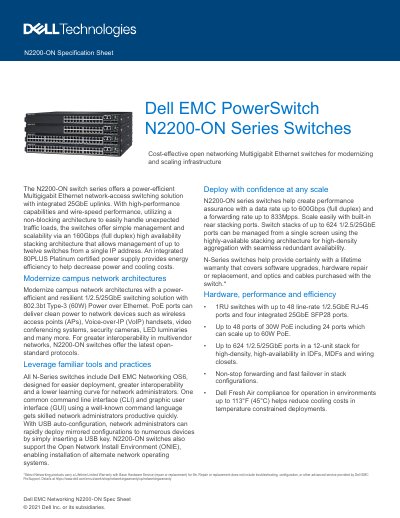

Technical specification sheet for the Dell EMC PowerSwitch N2200-ON Ethernet switch series.
The Dell EMC PowerSwitch N2200-ON series provides a power‑efficient Multigigabit Ethernet solution with integrated 25 GbE uplinks, PoE support, and a non‑blocking architecture for high‑density campus deployments. It includes an 80PLUS Platinum certified power supply and a stacking architecture that can manage up to twelve switches from a single IP address.
The spec sheet details hardware options, port configurations, power‑over‑Ethernet capabilities, performance metrics, management interfaces, and regulatory compliance, helping network engineers evaluate the switch for modern, scalable networks.
| Ports | up to 48 line‑rate 1/2.5 GbE RJ‑45 ports and four 25 GbE SFP28 ports |
|---|---|
| PoE Power | Up to 48 ports of 30 W PoE, 24 ports scalable to 60 W PoE |
| Stacking capacity | Up to 624 1/2.5/25 GbE ports in a 12‑unit stack |
| Power supply efficiency | 80PLUS Platinum certified |
| Forwarding rate | up to 833 Mpps |
The series can stack up to 12 units, providing a total of up to 624 1/2.5/25 GbE ports.
It supports up to 48 PoE ports at 30 W, with 24 of those ports able to scale to 60 W (802.3bt Type‑3).
The switches use an integrated 80PLUS Platinum certified power supply.
