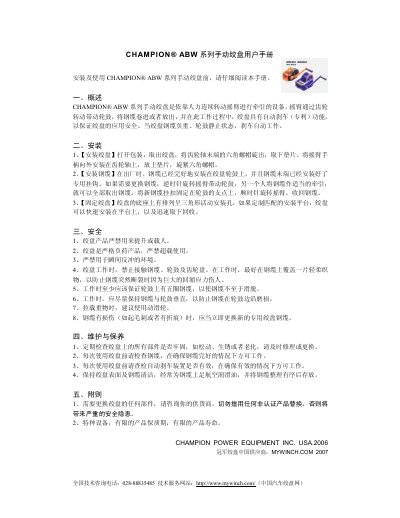

The Champion ABW series manual winch user manual provides installation, operation, safety, and maintenance instructions.
The manual introduces the Champion ABW series manual winch, a human‑powered device that winds steel cable onto a drum via a gear‑driven lever. It features an automatic brake to ensure safe operation.
The guide covers installation steps, safety precautions (e.g., no lifting of people, no overload, keep at least five cable wraps), regular maintenance, and part replacement advice. Technical data such as reduction ratio, transmission ratio, and handle length are also listed. This manual is written in Chinese.
| Transmission ratio | 40:1 |
|---|---|
| Handle length | 300 mm |
No, the winch is strictly prohibited from being used to lift or carry people.
At least five wraps of cable should be on the drum to prevent slippage.
