This document describes the features and characteristics of CMS-S040-040L Schottky Barrier Diode, including extremely low forward voltage, guard ring protection, and low reverse leakage current.

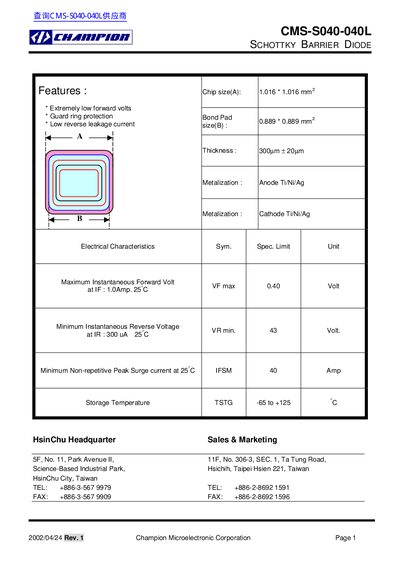

This document is a datasheet for the Champion CMS-S040-040L Schottky Barrier Diode. Key features include extremely low forward voltage, guard ring protection, and low reverse leakage current.
The device has a chip size of 1.016 * 1.016 mm with bond pad dimensions of 0.889 * 0.889 mm. The metalization for both anode and cathode is Ti/Ni/Ag, and the thickness is specified as 300um + 20,Lm.
| Chip size (A) | 1.016 * 1.016 mm |
|---|---|
| Bond Pad size (B) | 0.889 * 0.889 mm |
| Thickness | 300um + 20,Lm |
| Metalization (Anode) | Ti/Ni/Ag |
| Metalization (Cathode) | Ti/Ni/Ag |
The maximum instantaneous forward voltage is 2S volts.
The chip size measures 1.016 mm by 1.016 mm.
