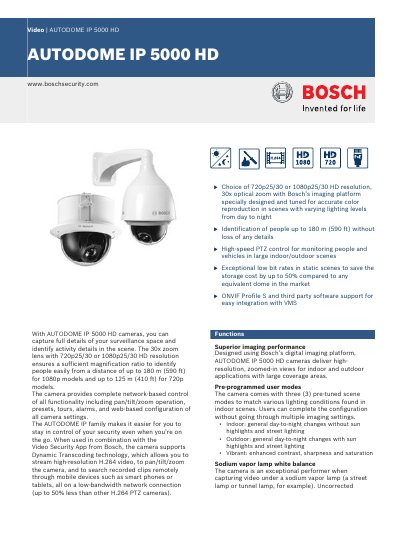

The Bosch AUTODOME IP 5000 HD manual provides specifications, installation steps, and operation instructions for the 30× optical‑zoom PTZ camera.
The AUTODOME IP 5000 HD is a network PTZ dome camera with 720p or 1080p HD resolution and a 30× optical zoom lens. It offers advanced imaging features such as Intelligent Dynamic Noise Reduction, Dynamic Defog, and multiple privacy masks, allowing clear identification of people up to 180 m away.
The manual covers installation, power options (PoE+ or 24 VAC), network configuration, recording options, and detailed technical specifications. It also includes mounting dimensions, accessory part numbers, and compliance certifications for indoor and outdoor deployments.
| Image sensor | 1/2.8" progressive scan CMOS |
|---|---|
| Total sensor pixels | 2.48 M pixels |
| Effective pixels (1080p) | 1984 × 1105 |
| Optical zoom | 30× (4.3 mm–129 mm) |
| Field of view | 2.3°–65° |
| Minimum illumination (Day mode) | 0.22 lux |
| WDR | 76 dB (DWDR) |
| Maximum pan speed | 300°/s |
| Maximum tilt speed | 200°/s |
| Power consumption (PoE+) | 13 W |
| Power consumption (24 VAC) | 14 W (24 W with heater) |
| Privacy masks | 24 individual masks |
The camera provides a 30× optical zoom lens ranging from 4.3 mm to 129 mm focal length.
The camera supports up to 24 individually configurable privacy masks.
It can be powered either by IEEE 802.3at PoE+ (single cable) or by a 24 VAC power supply.
The camera can pan at up to 300 degrees per second.
