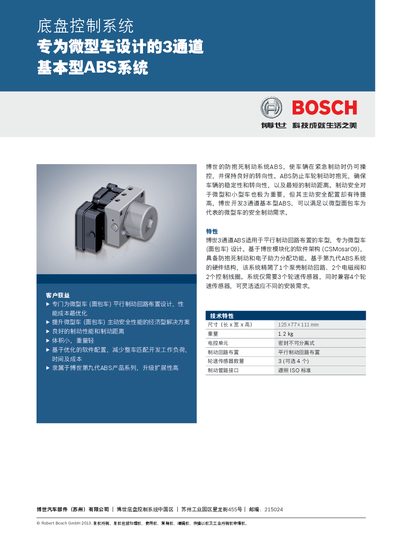

Bosch's 3‑channel basic ABS chassis control system for micro‑vans offers compact size, lightweight design, and optional 3‑4 wheel‑speed sensors.
The Bosch 3‑channel basic ABS system is a chassis control solution specifically designed for micro‑cars such as vans. It fits vehicles with a parallel brake‑circuit layout and provides anti‑lock braking together with electronic brake‑force distribution.
Key features include a modular software architecture, reduced hardware (one pump housing, two solenoid valves, two control coils), and flexibility to use three or four wheel‑speed sensors. The unit measures 125 × 77 × 111 mm, weighs 1.2 kg, and complies with ISO‑standard brake‑pipe interfaces, delivering optimized performance and cost for small‑vehicle applications. This manual is written in Chinese.
| Dimensions (L×W×H) | 125 x 77 x 111 mm |
|---|---|
| Weight | 1.2 kg |
| Wheel speed sensor quantity | 3 (optional 4) |
| Brake circuit layout | Parallel |
| Brake pipe interface | ISO standard |
| Electronic control unit type | Sealed non‑separable |
The system requires three wheel‑speed sensors but can also accommodate four sensors if needed.
The unit measures 125 × 77 × 111 mm and weighs 1.2 kg.
