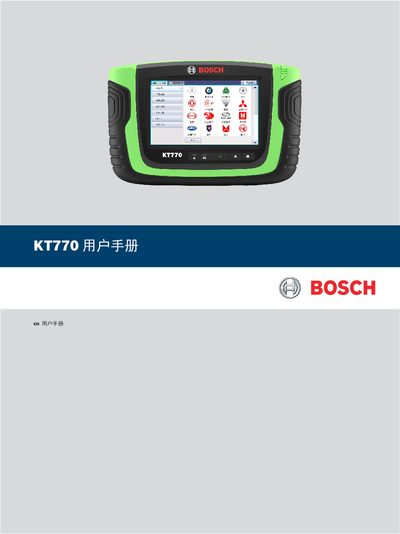

The Bosch KT770 manual provides safety instructions, system setup, diagnostic functions, maintenance tips, and spare‑part details for the automotive…
This manual guides users of the Bosch KT770 automotive diagnostic device through safe operation, system configuration, and diagnostic procedures. It includes warnings, safety measures, and detailed steps for connecting accessories such as the optional mini printer and external battery.
Technical specifications, spare‑part numbers, and maintenance recommendations are listed toward the end of the document, helping technicians keep the unit in optimal condition and quickly replace components when needed. This manual is written in Chinese.
| External power supply | 100 V~240 V / 50~60 Hz |
|---|---|
| Operating temperature | -10 °C ~ 45 °C |
| Storage temperature | -15 °C ~ 50 °C |
| Relative humidity | <90 % |
| Input voltage | DC 7 V~32 V |
| Micro SD card support | Up to 32 GB |
| Protection rating | IP30 |
| CPU | Cortex‑A8, 800 MHz |
| Operating system | Linux |
| Display | 7" 800×480 LED back‑lit LCD |
| Touch screen | 7" resistive |
Select the system self‑test option in the System Management Interface (section 15.2) and follow the on‑screen instructions.
