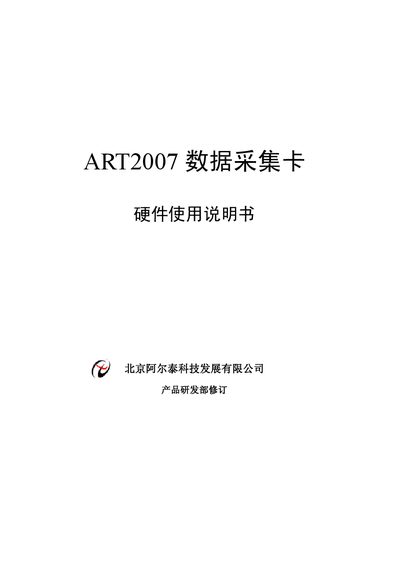

Hardware usage manual for the ART2007 DAQ card covering features, installation, wiring, data format and calibration.
The ART2007 is a PC/104‑bus data acquisition card designed for analog and digital signal capture, monitoring and control in fields such as field testing, electronics quality inspection, medical equipment and servo control. The manual provides a complete overview of the card's functions, hardware layout, connector definitions and installation procedures.
Detailed sections describe analog input configurations (single‑ended and differential), digital I/O, signal wiring methods, data formatting, register map, calibration steps and warranty information, enabling users to set up and operate the card safely and efficiently. This manual is written in Chinese.
| Analog Input Voltage Range | ±10V, ±5V, ±2.5V, 0~10V |
|---|---|
| Analog Input Resolution | 13 bit (including sign bit) |
| Maximum Sampling Rate | 500 kHz system throughput |
| Analog Input Channels | 32 single‑ended, 16 differential |
| Digital Input Channels | 16 DI (TTL compatible) |
| Digital Output Channels | 16 DO (TTL compatible) |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -40 °C to +120 °C |
The card supports ±10 V, ±5 V, ±2.5 V and 0 ~ 10 V input ranges.
It provides 32 single‑ended channels and 16 differential channels.
The card can achieve up to 500 kHz system throughput.
The device has 16 digital input (DI) and 16 digital output (DO) channels, both TTL compatible.
