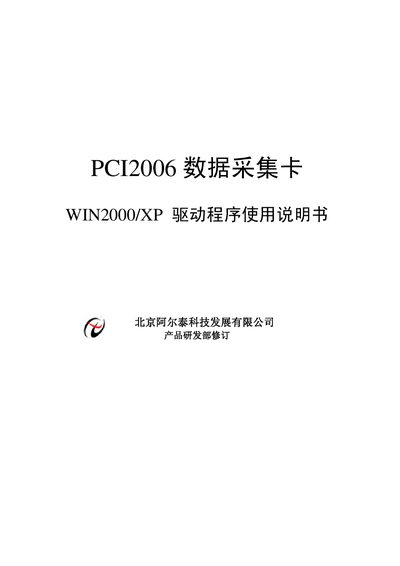

The document 'PCI2006 Data Acquisition Card WIN2000/XP Driver User Manual' is a product user manual published by Beijing Altai Technology Development Co., Ltd. The manual introduces the usage and features of the PCI2006 data acquisition card, including the use of upper-level user functions, management of PCI devices, different ways of acquiring AD data, operation of switch quantities, hardware parameter structure, etc. It also explains the data format conversion and arrangement rules, as well as provides application examples of upper-level user function interfaces. In addition, the manual provides a detailed explanation of high-speed, large-capacity, continuous, and uninterrupted data acquisition and storage technology. The manual also introduces common functions. This product is suitable for the WIN2000/XP operating system.
This manual provides detailed instructions for using the PCI2006 data acquisition card under Windows 2000/XP. It covers driver installation, device creation, and management of AD and DA operations through both high‑level user functions and low‑level register access.
The document also includes programming examples for various languages (C++, Visual Basic, Delphi, LabVIEW) and describes hardware parameter structures, data format conversion, and high‑speed continuous data acquisition techniques. This manual is written in Chinese.
| Supported Operating Systems | Windows 2000/XP |
|---|---|
| Digital Input Channels | 16 |
| Digital Output Channels | 16 |
Call the CreateDevice function to create a PCI device object and obtain a device handle.
Use the ReadDeviceProAD_NotEmpty function to continuously read AD data in non‑empty mode.
Use the SetDeviceDO function, which sets the state of the digital output channels.
