ART2153 data acquisition card is a data acquisition card based on PCI bus, USB bus, PC104 bus, etc. It integrates the advantages of many similar products at home and abroad, with its convenient use, stable performance, high cost performance, and has won the praise of many customers.
The ART2153 is a PC104‑bus data acquisition card designed for signal acquisition, waveform analysis and process control. It supports up to 32 single‑ended or 16 differential analog input channels and can be used on ARM or PC platforms.

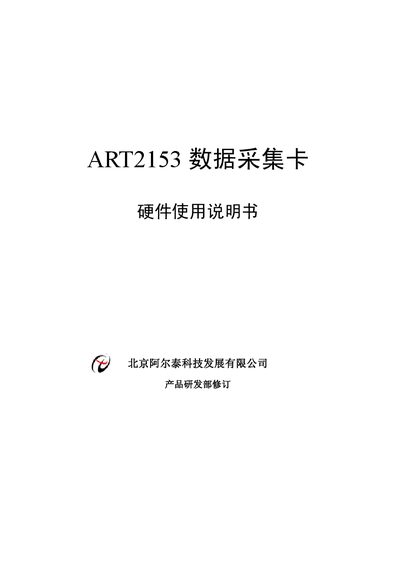

The manual provides detailed instructions on board address configuration, analog input settings, trigger options, clock sources, connector pinouts, and calibration procedures, as well as warranty and safety information. This manual is written in Chinese.
| Input range | +10V, +5V, +2.5V, 0‑10V, 0‑5V, 0‑2.5V |
|---|---|
| Resolution | 16 bit |
| Maximum sampling frequency | 230 kHz (500 kHz with AD7665) |
| Physical analog channels | 32 single‑ended, 16 differential |
| Analog input impedance | 10 MΩ |
| System measurement accuracy | 0.01 % |
| AD conversion time | 1.25 µs |
Use the ADDR1 dip‑switch; the address can be set between 200H and 3E0H in steps of 16, with the default address 300H occupying the next 20 I/O addresses.
The highest system sampling frequency is 230 kHz, and when using the AD7665 chip it can reach up to 500 kHz.
The card offers 32 single‑ended analog input channels or 16 differential channels, selectable via software.
