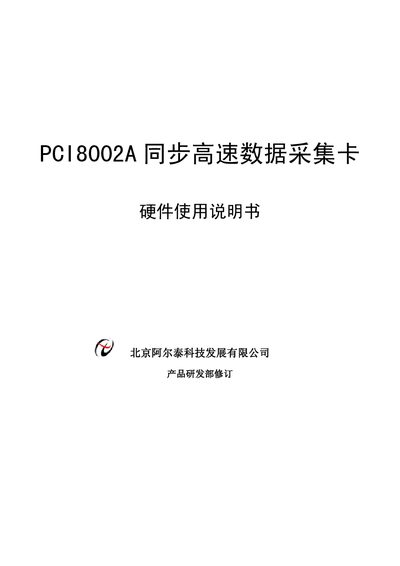

PCI8002A Synchronization High-speed Data Acquisition Card Hardware User Manual, introduces the product's functional overview, component layout diagram and brief description, signal input and output connectors, various signal connection methods, data format, emission sequence and conversion relationship, various functional usage methods, product application precautions, calibration, maintenance and other content.
This manual introduces the PCI8002A high‑speed data acquisition card, describing its main functions such as signal acquisition, process control, and servo control. It outlines the hardware layout, key components, and how to connect analog, digital input and output signals.
Detailed chapters cover AD input range settings, digital I/O wiring, data format, calibration procedures, and warranty information, helping users install, configure, and maintain the device safely. This manual is written in Chinese.
| Analog input range | ±5 V, ±2.5 V, ±1 V, ±0.5 V |
|---|---|
| Maximum sampling rate | 40 MHz |
| Minimum sampling rate | 400 kHz |
| Analog input channels | 4 (independent) |
| Digital input channels (DI) | 8 |
| Digital output channels (DO) | 8 |
| Power supply | +5 V and +12 V |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -40 °C to +120 °C |
| RAM depth per channel | 512 KB |
| Input impedance | >10 MΩ |
| Common‑mode voltage range | ±2 V |
The card can sample up to 40 MHz.
It provides four independent analog input channels.
The device operates from –40 °C to +85 °C.
The card is covered by a two‑year warranty from the date of shipment.
